Fire Testing Equipment

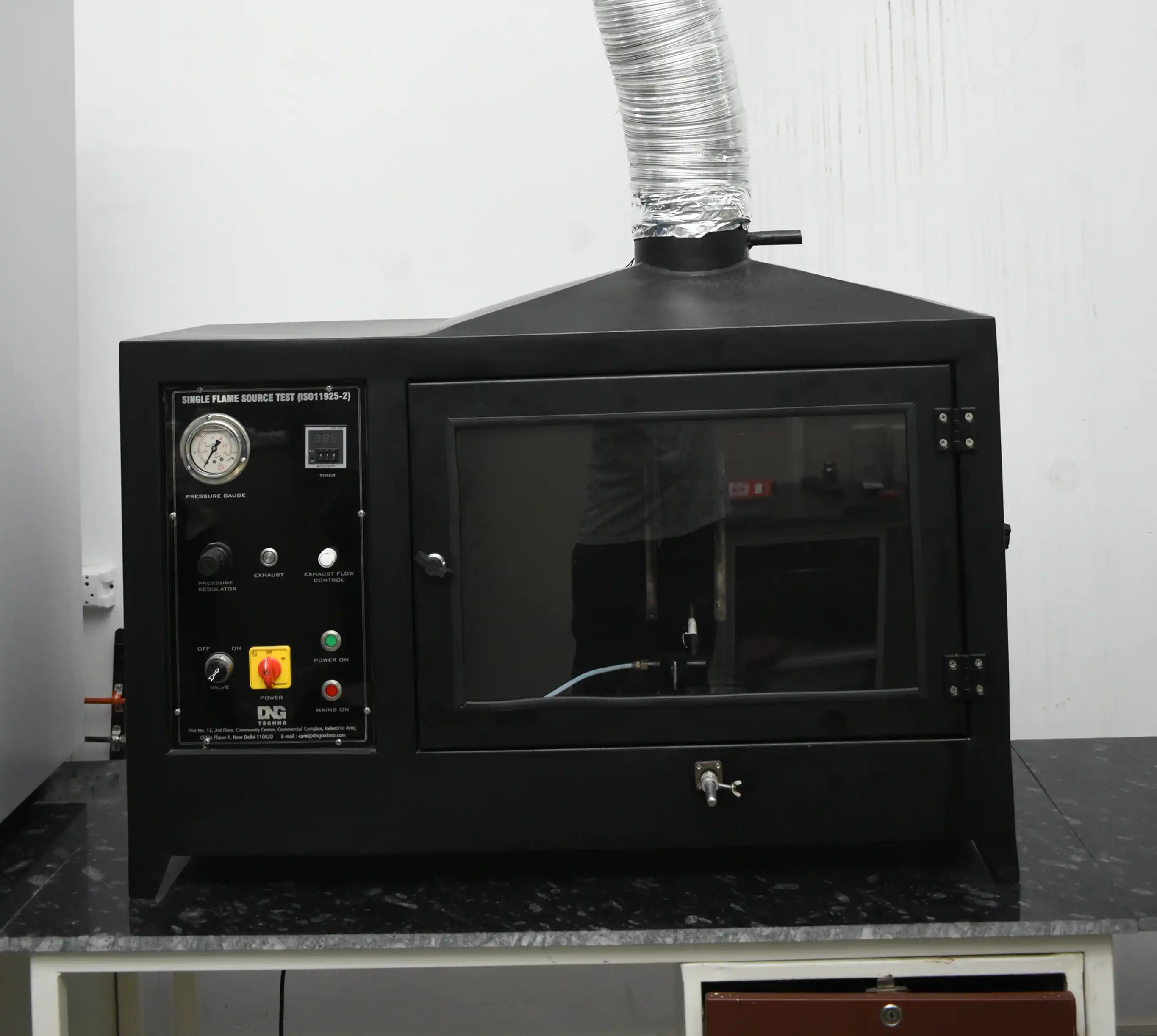

Single Flame Source

This is some text inside of a div block.

Introduction :

The ISO 11925-2 flammability standard by ISO is a standard by which plastic materials and furnishing materials can be classified with respect to their ability to withstand combustion. The rating of flammability given to a plastic material depends upon the response of the material to heat and flame under controlled laboratory conditions. The test results will give a good indication of the material’s acceptability with respect to flammability for a particular application. The behaviour to heat and flame of a thermoplastic depends on many factors such as the size, form, and end-use of the product, but also elements in the final application such as ease of ignition, burning rate, flame spread, fuel addition, intensity of burning, will affect the combustion response of the material.

Request a Quote
Features & Technical Specifications

MAIN FEATURE :

  • The combustion chamber dimensions: length 700mm *width 400mm * high 600mm.
  • The flame height can be adjusted, ignition.
  • The flame burning application time and hold time can range from 0 to 99 minutes 99 seconds regulation.
  • Combustion angle: 0 ° (vertical), 45 °.
  • The burner can be moved in a horizontal direction.
  • Glass doors for easy observation test.
  • All fixtures are made of stainless steel; beautiful and anti-corrosion.
  • Equipped with two types of the stainless steel sample holder. With flame height measuring.

‍

SPECIFICATION :

  • Product Name Single Flame Source Test
  • Standard ISO 11925-2, EN 45545-2
  • Dimension 400mm(W)*700mm(D)*600(H)
  • Power AC 220V, 50/60Hz, 10A
  • Weight About 50kg
