Fire Testing Equipment

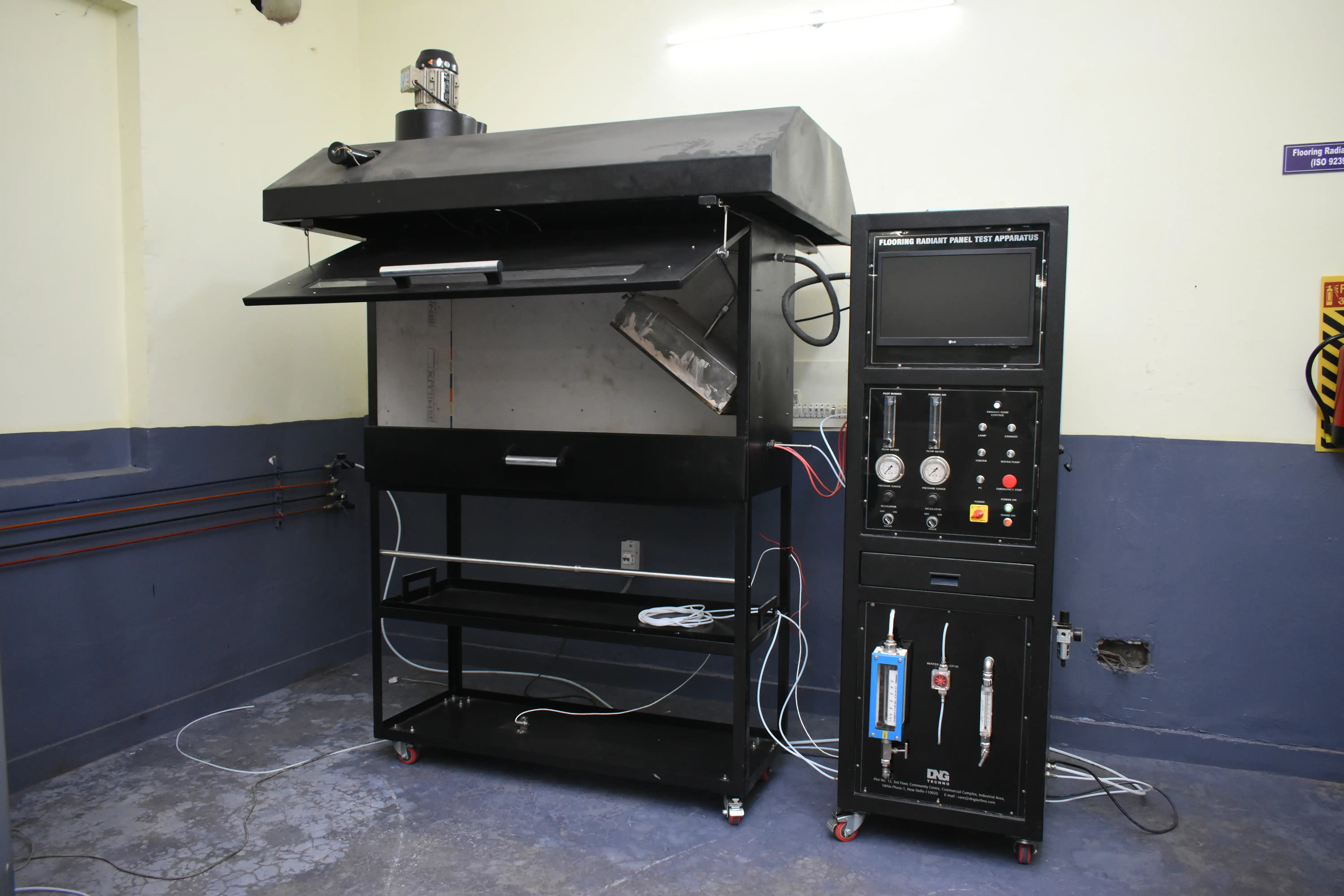

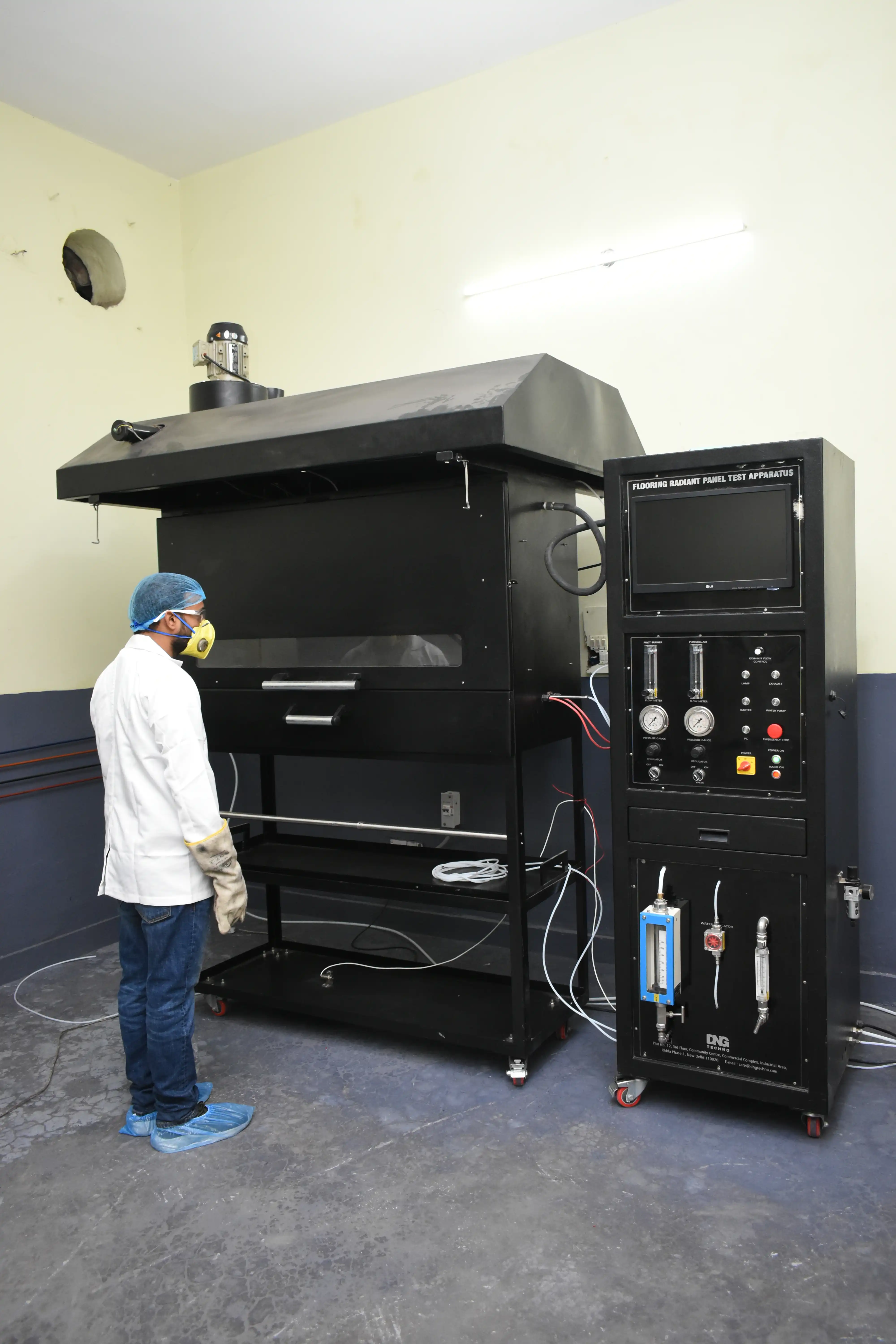

Radiant Panel (ISO 9239-1)

This is some text inside of a div block.

This part of ISO 9239 specifies a method for assessing the wind-opposed burning behavior and spread of flame of horizontally mounted flooring exposed to a heat flux radiant gradient in a test chamber, when ignited with pilot flames. This test method is used to measure the critical radiant flux of floor covering system exposed to a flaming initiation source in graded radiant heat environment within a test chamber.

This method is applicable to all types of flooring, e.g. textile carpet, cork, wood, rubber and plastics covering as well as coatings, exposed attic floor cellulose insulation.

Request a Quote
Features & Technical Specifications

Features :

  • Radiant Panel is inclined at 30 degree and directed at a horizontally mounted floor covering system specimen.
  • A test chamber made of Mild steel with paint and inside the chamber is insulted by calcium silicate board of thickness 12 mm.
  • Panel of Porous refractory made of Ceramic radiant heat source. The size of which is 300mm × 450mm.
  • Heat flux measurement range: (10) Kw/m2-50Kw/m2
  • Thermocouple K-type stainless steel sheathed thermocouple of 3.2mm.
  • Dummy calibration specimen with holder .
  • Sliding sample holder assembly for easy and safe loading of samples
  • Exhaust flow rate is 39 m3/min to 85 m3/min is adjustable.
  • Mass flow gas controllers with fine adjustment for the gas and air supply to the radiant panel.
  • Pyrometer to read black body temperature of radiant panel. Accuracy of Which is ±5ᵒC and temp range 480ᵒC to 530ᵒC.
  • Light attenuation system for smoke density measurement.
  • A small stainless-steel propane pilot burner assists in specimen ignition of ID-6mm and OD-10mm
  • Equipment dimensions: 2400 (L) X 2500 (H) X 1500 (W)

Data Acquisition System consisting of:

  1. Laptop or Personal computer with monitor.
  2. Windows base software with display and log real time test data.
  3. Real time display the test data and reporting of test data and measured values according to the test method.
  4. Plot the graph of the distance burned until flame-out is reached and converted into an equivalent critical radiant flux in kw/m2 in software.
  5. Gas and air supply are control by software from mass flow controller.
