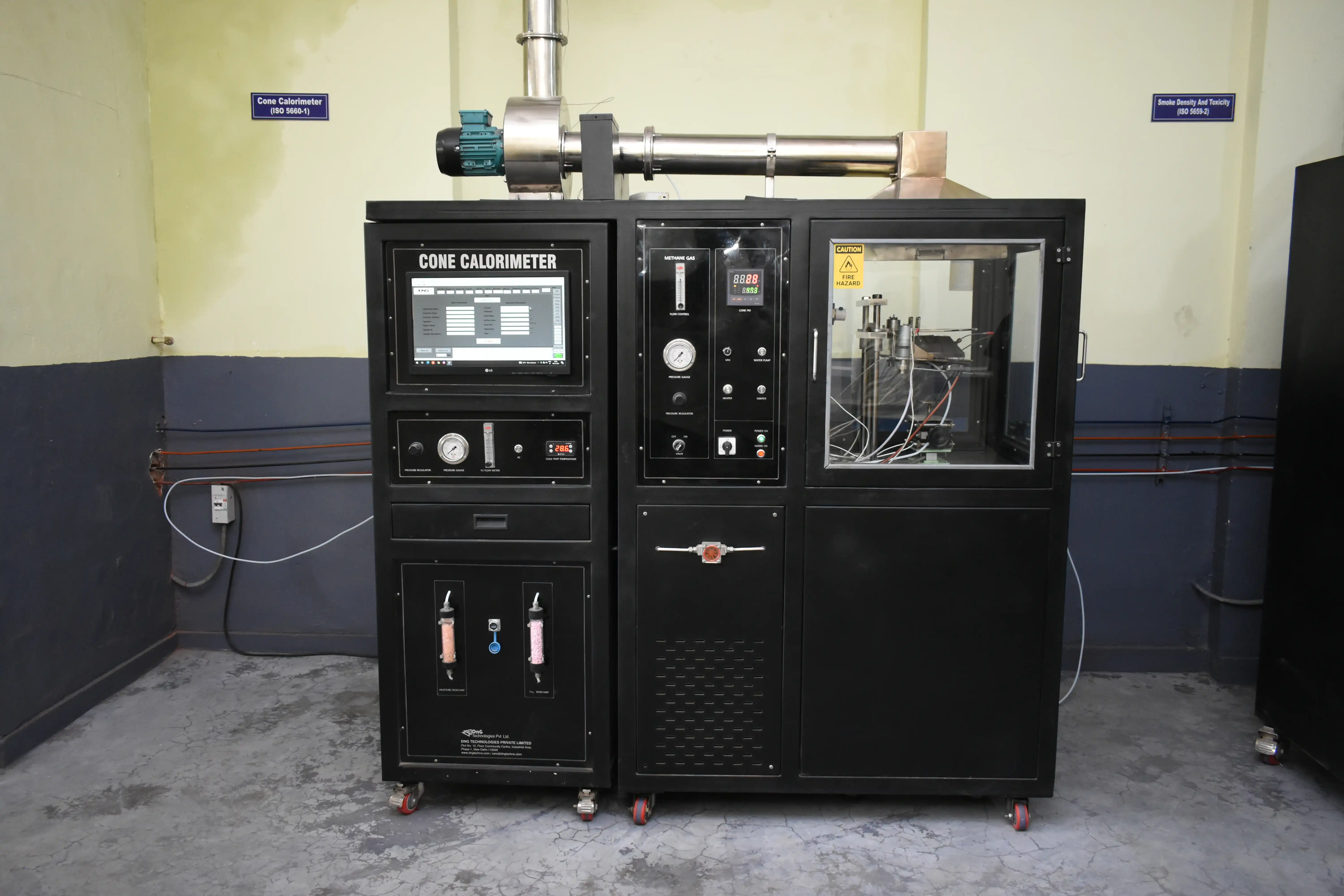

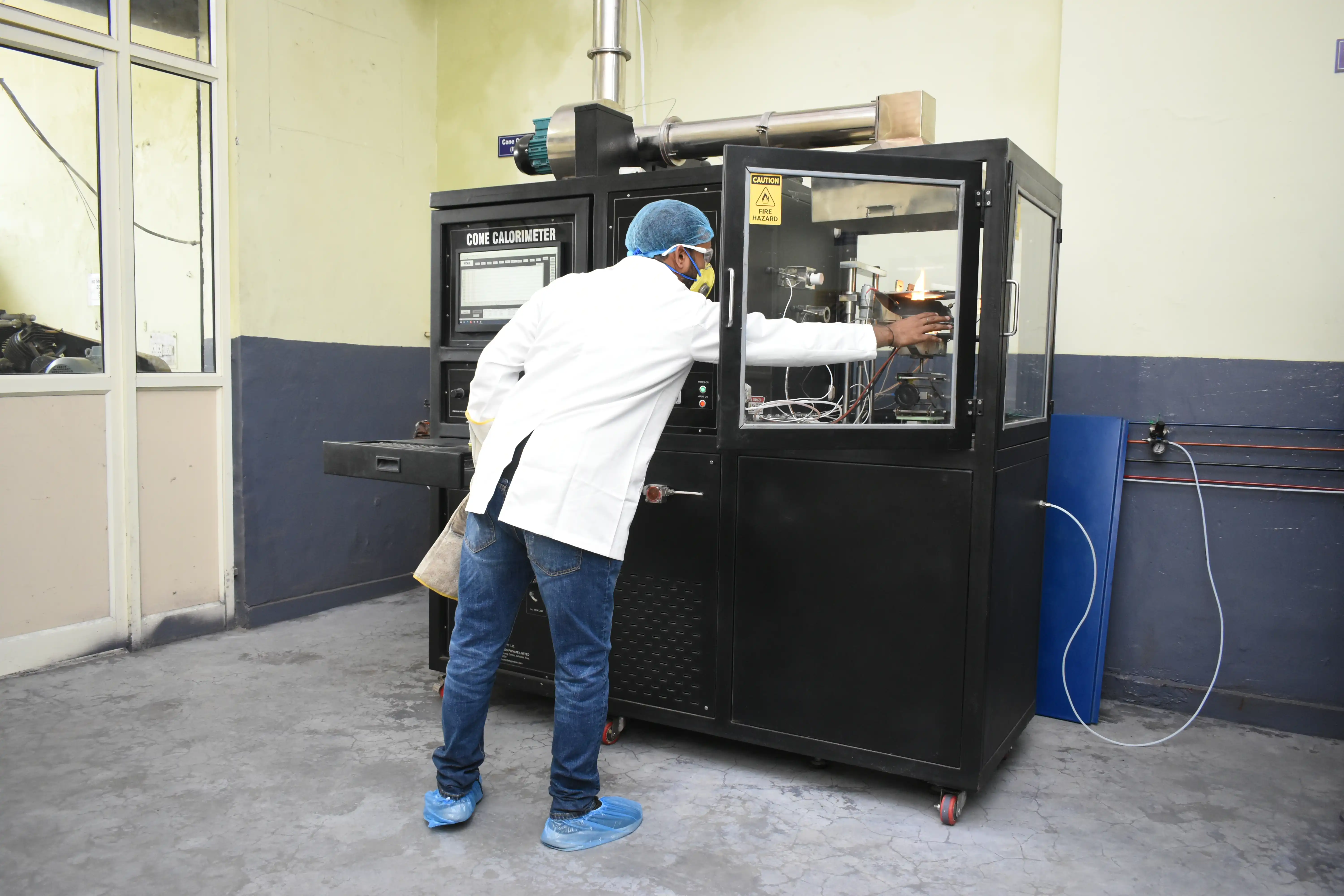

Cone Calorimeter

This is some text inside of a div block.

THIS PART OF ISO ISO 5660-1 specifies a method of test for measuring the lateral spread of flame along the surface of a specimen of a product orientated in the vertical position. It provides data suitable for comparing the performance of essentially flat materials, composites or assemblies that are used primarily as the exposed surface of walls in buildings and vehicles, such as train and ships.

Request a Quote
Features & Technical Specifications

Technical Specification:

  • Conical Heater – Heater element wound in the form of a truncated cone rated 5000 watts at 230Volts with the Radiative Heat flux of 100 kW/m2.
  • Temperature Controller – 3 K-type thermocouples.
  • Exhaust System – Made of the heat resistant Grade of Stainless Steel for the longer life, Consists of Hood, Exhaust fan (capable of producing flow from 0.012-0.035 m3/s), orifice Plate flow meter.
  • Gas Sampler – Ring type Gas Sampler along with the soot filters, cold trap etc. to reduce the temperature of the exhaust gas for the precise measurements.
  • Load Cell – Accuracy of 0.1gm and capacity 6 kg.
  • Radiation Shield – To protect the Specimen from the radiation before the start of the test, important for the specimens which ignite prematurely upon radiation exposure.
  • Spark Igniter – A 10kV discharge across a 3mm Spark Gap located 13mm above the center of the specimen and It will be supplied with automatic positioning.
  • Oxygen Sensor – Paramagnetic oxygen sensor ( Servomex – UK, make with the detection Range from 0-25%.
  • Heat Flux Meter – Used for maintaining the required radiation level at the surface of the Specimen
  • Calibration Burner – To calibrate the Heat Release Rate Apparatus using 99.5% pure methane.
  • Sample Thickness -Sample Thickness up to 50mm
  • CO and CO2 sensors (Optional at extra cost) – NDIR CO gas sensor with range 0-1% and NDIR CO2 gas sensor with range 0-10%.
  • Differential Pressure Transducer- Range 0-500Pa and Accuracy 0.25%
  • Machine will be supplied as per ASTM E1354, ISO 5660-1 and EN-45545-2.


Features:

  • Automatic control of motorized heat shield to protect specimen from heat exposure before test.
  • All stainless-steel construction of Hood, ducting, orifice plate, ring sampling probe, and exhaust blower.
  • Smoke measuring system – ND Filter and Laser light source with auto calibration and scaling.
  • Temperature controllers for radiant heat source with digital display.
  • Water cooled radiometer for heat flux calibration.
  • Heat Resistant Glass Protective screen is available.
  • 19” gas analysis rack detachable.
  • Cold trap and moisture trap.


Operating Software:

  • The software would be provided with a user interface compatible with Windows.
  • The software would provide the recording of the essential parameters such as mass loss, temperature of gas at the orifice, differential pressure at the orifice and the amount of the oxygen consumed.
  • The graphical recording would be done for the Heat Release Rate with Time.
  • Automatic report generation when you stop the test.
